Guardrail powder coating

Location: China
Business Type: Manufacturer, Exporter
Brands: Huacai
Certificate: ACS,NSF,QUALICAOT,WRAS,KTW
Model: RAL COLOR
Terms of payment and delivery: 30% Pre-payment,70% before delivery
Minimum order quantity: 100kg
Price: Consultation
Packing details: 20kg/ctn
Delivery time: 7-10DAYS
Payment method: T/T,L/C
E-mail : [email protected]
















BRIEF

It is made of German and Poly-turned trees and TGIC or HAA and other chemicals.



CHARACTERISTIC

Excellent mechanical properties and excellent weather resistance.



APPLICATION FIELD

Suitable for all kinds of long-term outdoor exposure products such as communication base stations, mechanical equipment, household appliances, architectural aluminum profiles, transportation facilities, stadium facilities, courtyard facilities, etc.



PRODUCT SERIES

Available in standard weathering and ultra-high weather resistant products; can be made into a variety of gloss and a variety of colors; can be made into flat, sand, wrinkles, metal effects and mixed colors; some products are certified by Qualicoat Classl.



POWDER PROPERTIES

Specific gravity:11-1.8g/cm2;



FILM PROPERTIES

Mechanical

behavior

Pencil
hardness
GB/T6739-1996 ≥H
Adhesion GB/T9286-1998 Level0
Bending GB6742-86 φ3mm
Shock GB/T1732-93 50kg.cm
Cup burst GB 9753-88 >6mm

Corrosion

resistance

Salt spray
resistance
GB/T1771-91 No change in coating film for 1000 hours,single side corrosion<2mm at the cross-section
Wet heat
resistance
GB/TI740-79 >1000 hours of light loss,≥l
Corrosion
resistance
Photoaging test ASTM Gl540UV0.78w/m/@340nm 500h Guaranteed light rate
≥80%

Note: The above parameters are laboratory data and are for reference only. The actual indicators are related to the customer's environment, equipment, substrate, pre-treatment, spraying process and other factors.



APPLICATION CONDITION

Pre-treatment: phosphating treatment, inscription processing; coating: polyester powder coating is suitable for the following equipment coating: corona electrostatic spraying, friction electrostatic spraying, electrostatic fluidized bed spraying.Curing conditions:200·C@ 10 minutes,1800C @ 15 minutes, can also be designed according to customer needs.



PACKAGE

Packed in carton, net weight 20kg/carton, lined with polyethylene plastic bag.



STORAGE CONDITIONS

Dry and ventilated indoor storage below 30 C, avoid direct sunlight. Under these conditions, the powder can be stored stably for 12 months. If it meets the requirements, it can still be used.



SAFE AND HEALTHY

All raw materials of powder coating do not contain toxic substances, and will not release toxic gases during baking.
but should avoid inhaling dust during use. Operators should wear dust masks and minimize long-term contact between skin and powder. The paint on the skin can be washed with soap.

about us huacai

Zhejiang Huacai Advanced Material CO., LTD is an outdoor powder coating manufacturer and electrostatic powder coating paints supplier. Our factory was established in 1998, covers an area of 30 thousand square meters. The company is located in Huzhou, Zhejiang. Guangdong Huacai Powder Technology CO., LTD was established in 2016, located in Dongwan, Guangdong. We’re the top ten manufacturers that produce indoor, outdoor powder coating and electrostatic powder coating paint in China. HUACAI regards product quality as the life of the enterprise, We strictly control the quality of products, in addition to own resin factory, we use advanced testing instruments(SHIMADZU XRF, Mastersizer 3000E, Datacolor 400) to test products.
Anti-graffiti powder coating: unique base material

Anti-graffiti powder coating: unique base material

Today, as the urbanization process continues to accelerate, the beauty and cleanliness of public fac...

High temperature resistant powder coating: double guarantee of thermal expansion coefficient and thermal conductivity

High temperature resistant powder coating: double guarantee of thermal expansion coefficient and thermal conductivity

1. Thermal expansion coefficient: ensure close fit between coating and substrateThe thermal expansio...

A study on the wide application and necessity of powder coating of aluminum profiles

A study on the wide application and necessity of powder coating of aluminum profiles

1. The main application fields of powder coating of aluminum profilesPowder coating of aluminum prof...

Curing process of powder coating for indoor metal furniture: precise control of temperature and time

Curing process of powder coating for indoor metal furniture: precise control of temperature and time

1. Overview of powder coating curing processPowder coating is an efficient and environmentally frien...

How do pigments affect the lightfastness and weather resistance of polyester powder coatings?

How do pigments affect the lightfastness and weather resistance of polyester powder coatings?

In polyester powder coatings, pigments are the main carriers of color, and their types, structures a...

Main components and functions of cabinet powder coatings

Main components and functions of cabinet powder coatings

1. Basic components of cabinet powder coatingsCabinet powder coatings are mainly composed of five ma...

Industry knowledge

In which fields is the powder coating mainly suitable for guardrail coating? Are there any specific application scenarios or requirements?

1. Applicable fields
As a key node for information transmission, the guardrail of the communication base station must not only have basic protection functions, but also withstand the test of severe weather and long-term outdoor exposure. The company's powder coating, with its excellent weather resistance and mechanical properties, ensures that the base station guardrail can remain in good condition in extreme environments and effectively extend its service life.
In industrial production environments, mechanical equipment guardrails must withstand frequent physical collisions and frictions while maintaining the appearance of beauty. The company's powder coating has excellent wear resistance and impact resistance, which can meet the high-intensity use requirements of mechanical equipment guardrails, while providing a variety of colors and gloss options to enhance the overall aesthetics.
As consumers' requirements for the appearance and durability of household appliances continue to increase, the quality of the coating of guardrails as an important part of household appliances is crucial. The company's powder coating not only meets international environmental standards, but also has good adhesion and corrosion resistance, which can ensure that the guardrails of household appliances remain bright and new during long-term use.

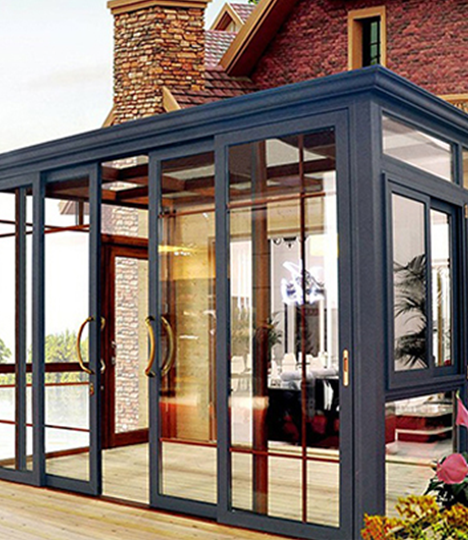

As an important part of modern buildings, the coating of architectural aluminum profile guardrails must take into account both aesthetics and functionality. The company's powder coatings have excellent weather resistance and color stability, which can ensure that the architectural aluminum profile guardrails maintain a stable appearance and performance under various climatic conditions.

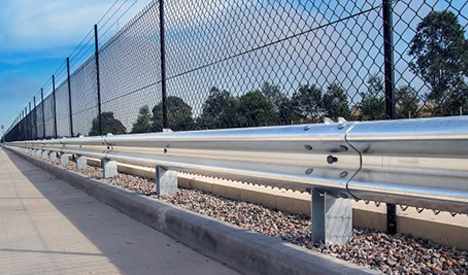

Traffic facility guardrails are directly related to road safety and driving experience. The company's guardrail powder coatings, with their excellent weather resistance and UV resistance, ensure that the traffic facility guardrails are still clearly visible under severe weather conditions, providing strong protection for road safety.

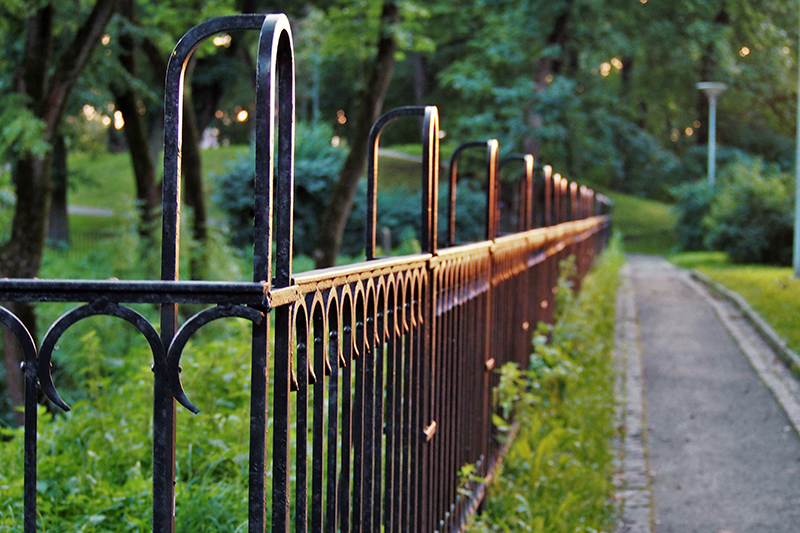

Stadium and courtyard facility guardrails need to withstand the impact of a large number of people and activities while maintaining beauty and durability. The company's powder coatings have excellent weather resistance and anti-aging properties, which can meet the high-intensity use requirements of these guardrails, while providing a variety of colors and effects to enhance the overall visual effect.
2. Specific application scenarios and requirements
For guardrails that need to be exposed to the outdoors for a long time, such as communication base stations, traffic facilities, etc., the company's powder coatings, with their excellent weather resistance and UV resistance, ensure that the guardrails can maintain a stable appearance and performance under extreme weather conditions. At the same time, the company uses advanced testing instruments (such as SHIMADZU XRF, Mastersizer 3000E, Datacolor 400) to strictly test the products to ensure that each batch of coatings meets international standards.
In scenes such as mechanical equipment and traffic facilities, guardrails need to withstand frequent physical collisions and friction. The company's powder coatings have excellent wear resistance and impact resistance, which can meet the high-intensity use requirements of these guardrails. In addition, the company also has its own resin factory and raw material production center to control product quality from the source to ensure the stability and reliability of the coating.
For guardrails in scenes such as household appliances, architectural aluminum profiles and stadiums, their coating must not only be functional but also aesthetic. The company's powder coatings provide a variety of color and gloss options, such as flat, sanded, wrinkled, metallic effects and mixed colors, which can meet customers' personalized needs for the appearance of guardrails. At the same time, the company also has a complete quality assurance system and a strict quality management system to ensure that each batch of coatings meets customer requirements.
The company also provides customized services for the specific needs of different customers. For example, we design curing conditions (such as 200°C@10 minutes or 180°C@15 minutes) according to customer needs, and provide pre-treatment services (such as phosphating and engraving). These customized services not only meet the personalized needs of customers, but also further enhance the market competitiveness of the company's products.
